Front Suspension
PRESS FIT BALL JOINT MOUNTED ON OUTER EDGE OF LOWER FRONT CONTROL ARM, LOWER PORTION OF SPINDLE ATTACHES TO IT. ALL SLs & SLCs UP TO 1985 END. FOR LATER VEHICLES, SEE # 33-3231.
PRESS FIT JOINT MOUNTED TO OUTER POINT OF FRONT LOWER CONTROL ARM. 2 PER CAR FOR ALL SLs 1986 THRU 1989.
BLACK RUBBER RING SET BETWEEN TOP OF FRONT COIL SPRING AND CHASSIS. REPAIR SIZE OF 23mm HEIGHT. CAN BE SHAVED FOR SMALLER HEIGHT OR LIFT.
CONTAINS ALL RUBBER BUSHINGS AND METAL HARDWARE TO MOUNT BOTH SIDES OF FRONT SWAY BAR TO CHASSIS. 1 KIT PER CAR FOR ALL 380s & 450s. FOR 560SL KIT, SEE # 32-3035.
KIT CONTAINS ALL RUBBER BUSHINGS AND METAL HARDWARE TO MOUNT BOTH SIDES OF FRONT SWAY BAR TO CHASSIS. 1 KIT PER CAR FOR ALL 560SLS ONLY. FOR 380s & 450s, SEE KIT # 32-3001
For 190sl For 190,d & late 180b,c,db,dc from Chassis#02946. For 230sl 250sl 280sl. For all 107 Chassis.
For 190sl For 190,d & late 180b,c,db,dc from Chassis#02946. For 230sl 250sl 280sl. For all 107 Chassis.
EACH KIT CONTAINS INNER & OUTER BEARINGS, RACES, & SEAL. 2 KITS PER CAR.
IDLER ARM REPAIR KIT from Early 280SL W113 Chow in pic for reference FITS ALL 280SLs FROM CHASSIS # 000019 EXCEPT FOR 000091 & 000108. Is also used on the following chassis 107 108 109 111 113 114 115 116 123 126
POWER STEERING GEAR BOX This item qualifys for bulk item shipping due to weight. Your shipping will be charged an additional 30.00 on checkout. 450 & 380SL/SLC
280SL/SLC ALL, 350SL/ALC ALL, 450SL/SLC ALL, 380SL/SLC ALL, NOT FOR 560SL.
RUBBER HOSE WITH METAL COMPRESSION FITTING ENDS FROM POWER STEERING PUMP TO BOX. 450SL 107.044 UP TO 021761 450SLC 107.024 UP TO 008202Article code: v.nr.1079970282
RUBBER HOSE WITH METAL COMPRESSION FITTING ENDS FROM POWER STEERING PUMP TO BOX. 450SL 107.044 FROM 021762 UP TO 028299. 450SLC 107.024 FROM 008203 UP TO 011199Article code: v.nr.1079972082
RUBBER HOSE WITH METAL COMPRESSION FITTING ENDS FROM POWER STEERING PUMP TO BOX. 450SL 107.044 FROM 028300 UP TO 058396 450SLC 107.024 FROM 011200 UP TO 028330Article code: v.nr.1079973182
RUBBER HOSE WITH METAL COMPRESSION FITTING ENDS FROM POWER STEERING PUMP TO BOX. 450SL 107.044 FROM 058397 TO END 450SLC 107.024 FROM 028331 TO ENDArticle code: v.nr.1079974482
RUBBER HOSE WITH METAL COMPRESSION FITTING ENDS FROM POWER STEERING PUMP TO BOX.
12mm I.D. HOSE FOR LOW PRESSURE RETURN FROM P/S BOX TO PUMP. SOLD IN 1 METER LENGTH, MUST BE CUT TO SIZE FOR SPECIFIC USE IN RETURN PATH. 450SL 107.044 FROM 021762 TO END 450SLC 107.024 FROM 008203 TO END 380SL/SLC ALL 560SL ALL
FOR 1969-1971 280SL AND 1973-1975 450SL (117.982 UP TO 030108) LATE STYLE PUMP WITH TAPERED OR CONICAL SHAFT. IF INSTALLING ON A PRE-1969 VEHICLE OR ARE REPLACING A PUMP WITH THE CYLINDRICAL SHAFT, YOU MUST REPLACE THE PUMP PULLEY WITH PART # 46-2120B.
COMES WITHOUT FRONT SHAFT SEAL, FOR VICKERS PUMPS ONLY. COTACT YOUR SALES REP. FOR DETAILS CONCERNING ZF PUMPS. 280SL/SLC WITH M110.986 & 990 350SL/SLC WITH M116.984 & M116.982 FROM 10.005801 & 12.016547. 380SL/SLC WITH M116.960 & 962 450SL/SLC WITH
FOR ALL EARLY MODELS WITH PUMPS THAT USE A SEPARATE RESERVOIR. 280SL/SLC WITH M110.982 & 992 350SL/SLC WITH M116.982 UP TO 10.005800 & 12.016546 450SL/SLC WITH M117.982 UP TO 030108
560SL ONLY. FOR 450 & 380SL FRONT SHOCK, SEE # 32-8100. ORIGINAL BILSTEIN, 2 PER CAR
FRONT SHOCK FOR ALL SLs EXCEPT 560SL. FOR 560SL FRONT SHOCK, SEE # 32-3004. ORIGINAL BILSTEIN, 2 PER CAR
FRONT SUB-FRAME MOUNT KIT; CONTAINS ALL 4 MOUNTS AND MOUNTING HARDWARE.Article code: v.nr.1153301875

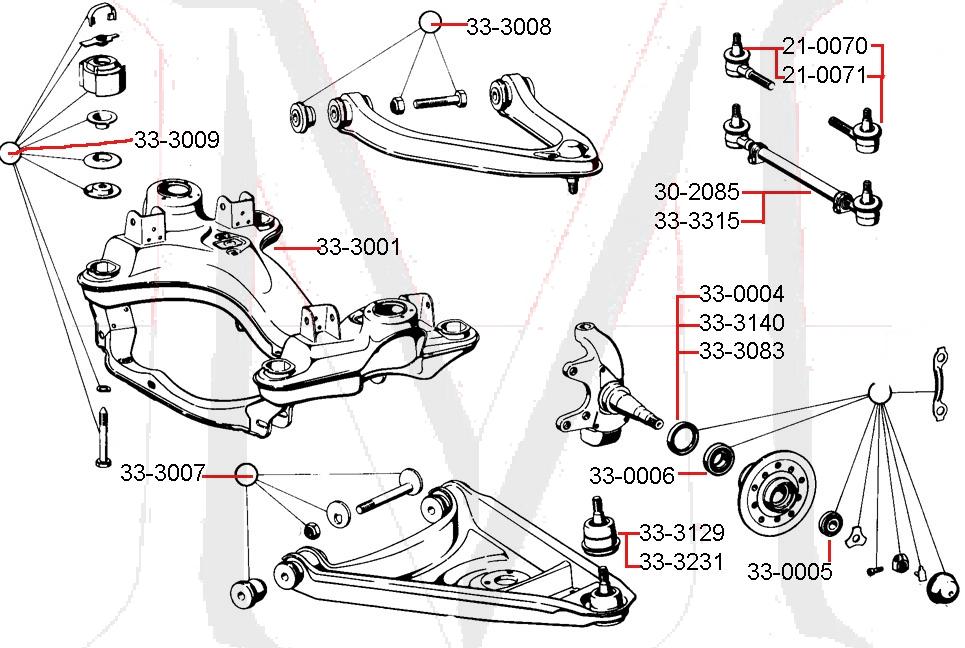

2 PER CAR, COMES COMPLETE WITH CENTER TUBE AND 2 TIE ROD ENDS.Article code: v.nr.1073300203
